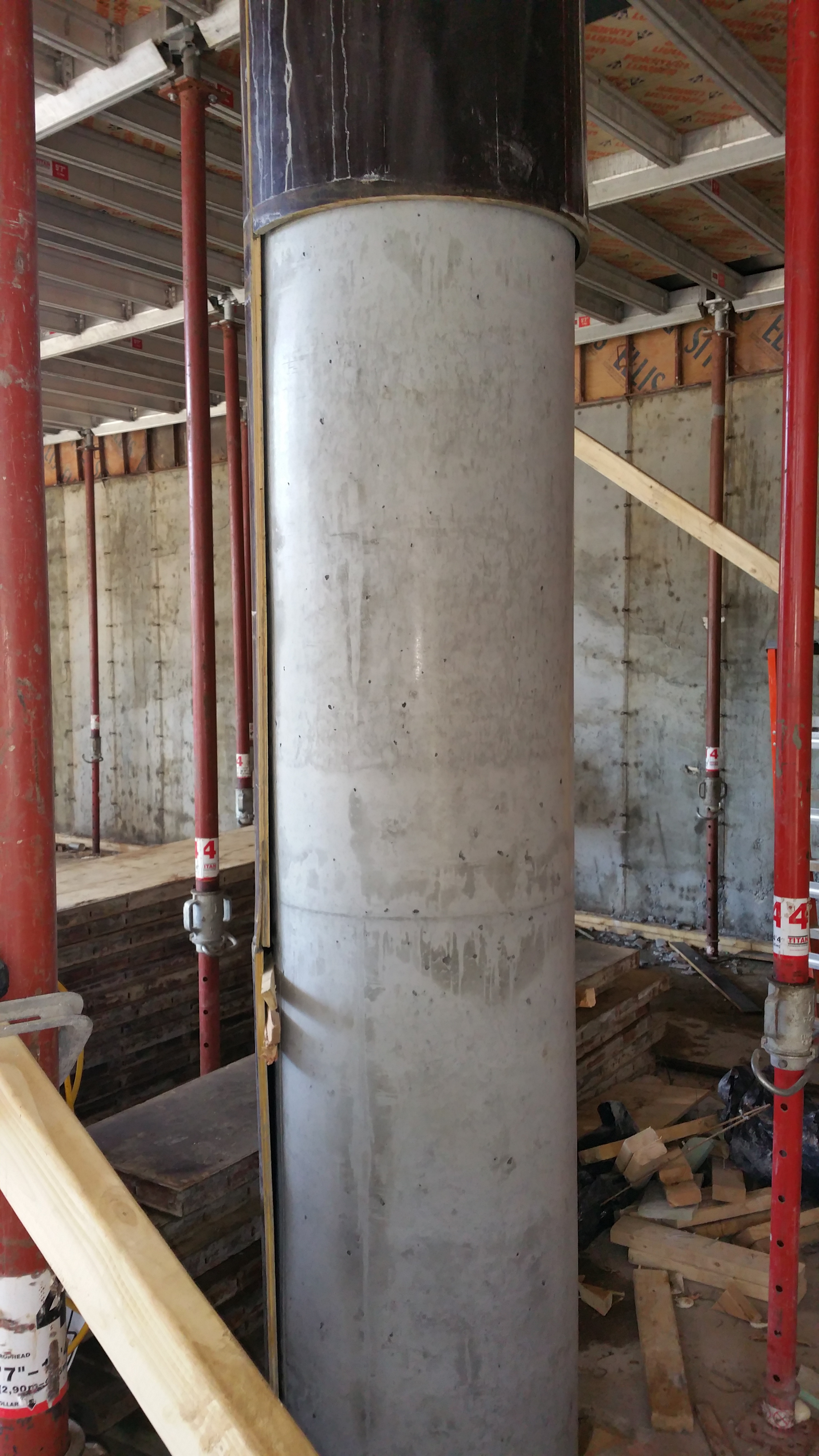

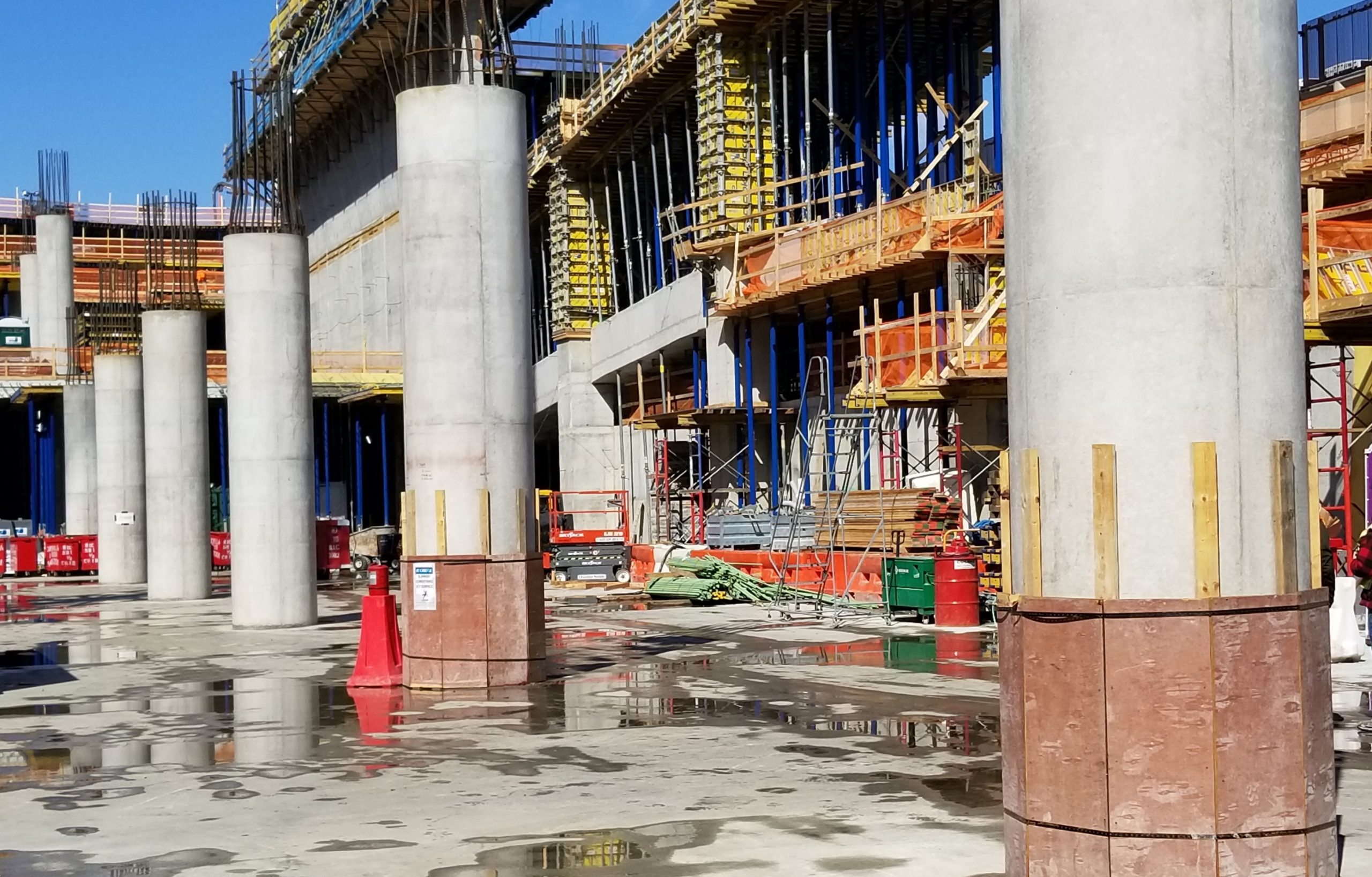

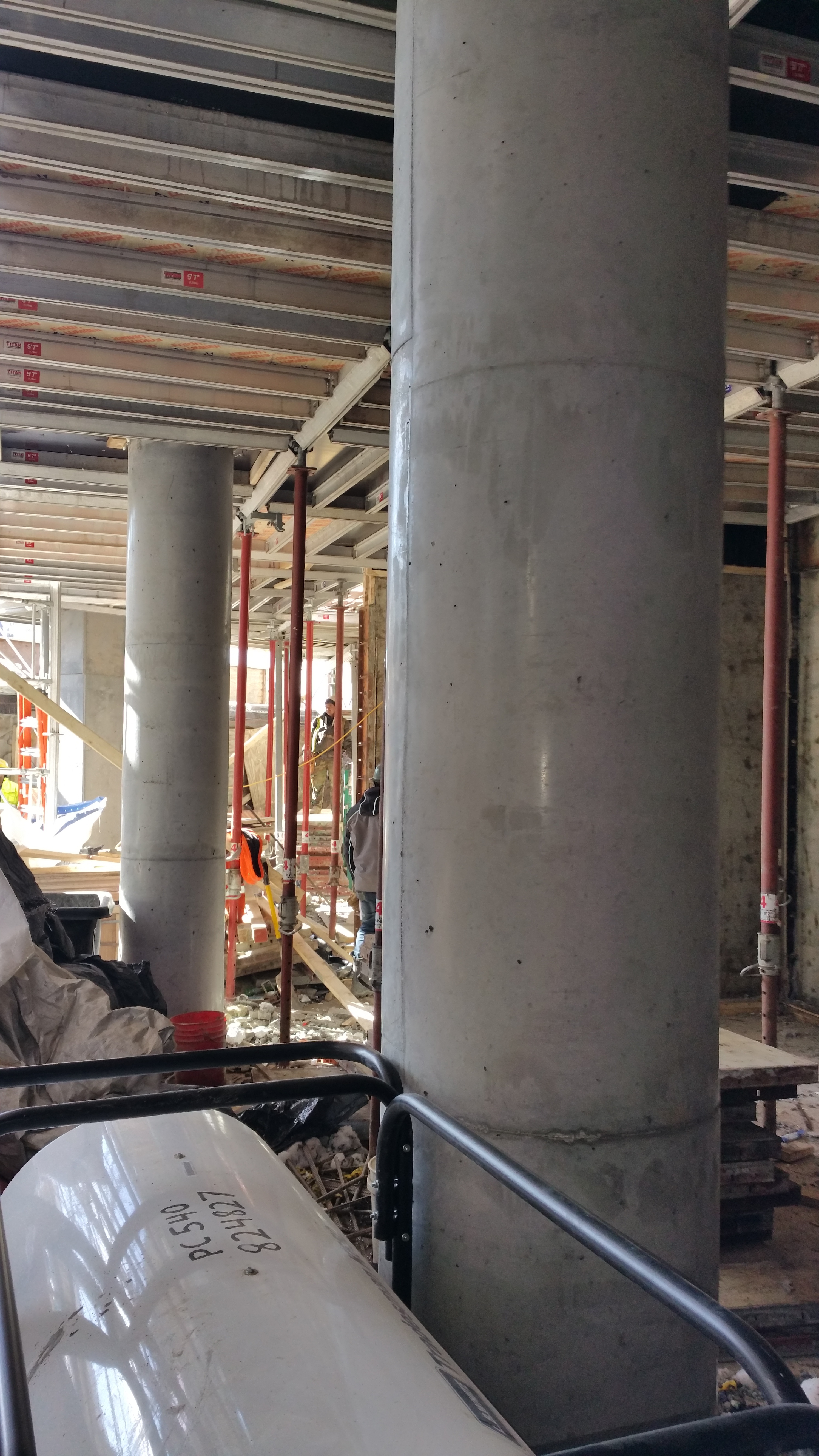

Round Column Form

Two-Piece Column Forms is innovative, premium overlaid plywood with excellent surface durability for mirror gloss finishes. Panel Construction is a three-part, high-density, overlay on hardwood Poplar/Birch mixed inner ply. It is manufactured with a two-step layup, bonded by phenolic glue, and laminated with #100 film paper on both sides. After hours of 95 ° C high temperature pressurized with molded half round forms, the half round columns is set and formed permanently. The edges are then trimmed tongue and groove and calibrated to fit the round column perfectly.

Category:

Installation

– Treat inner ply film with concrete release agent firstly.
– Fix the steel belts horizontally according to the lines.
– If the height is more than 10’ , please install it as the indication below.
– From feedback on site, only 2 skilled workers can install 15 circular columns in 8 hours.
View Catalogue



Maintenance & Storage

Lightly treat the ply film with oil before next usage.

place the formwork vertical, away from direct sunlight and water.

View Catalogue

Spiral Paper Tube

– Fast & Easy way to form concrete columns, piers & footings
– Available from 6″ to 60″diameters.
– cut-to-length using ordinary power tools
– 100% Recycled Paperboard
– Rain-resistant technology keeps wet weather from impacting your pour.

No cleaning, reassembling, or return freight costs.

Set and pour multiple columns at one time.
